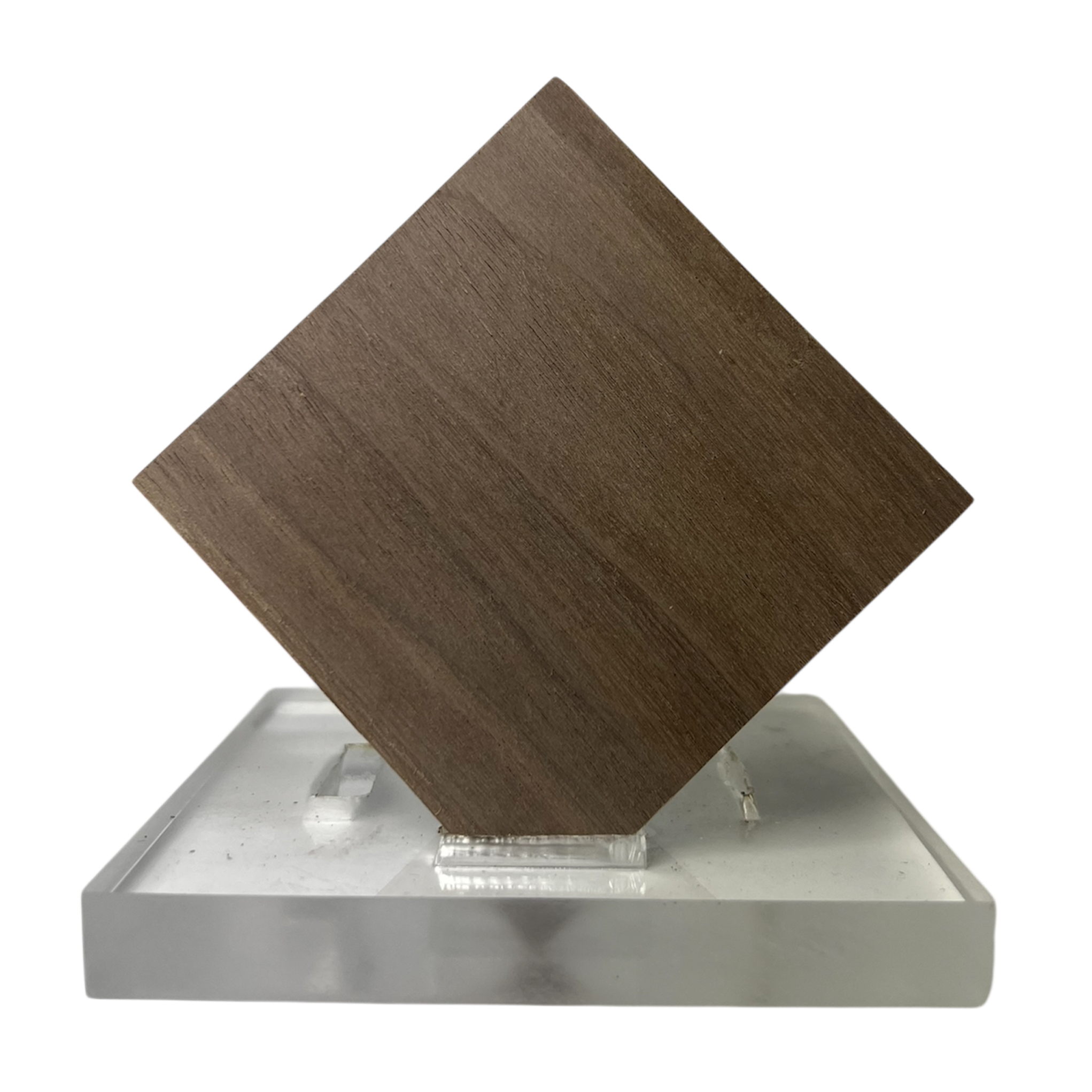

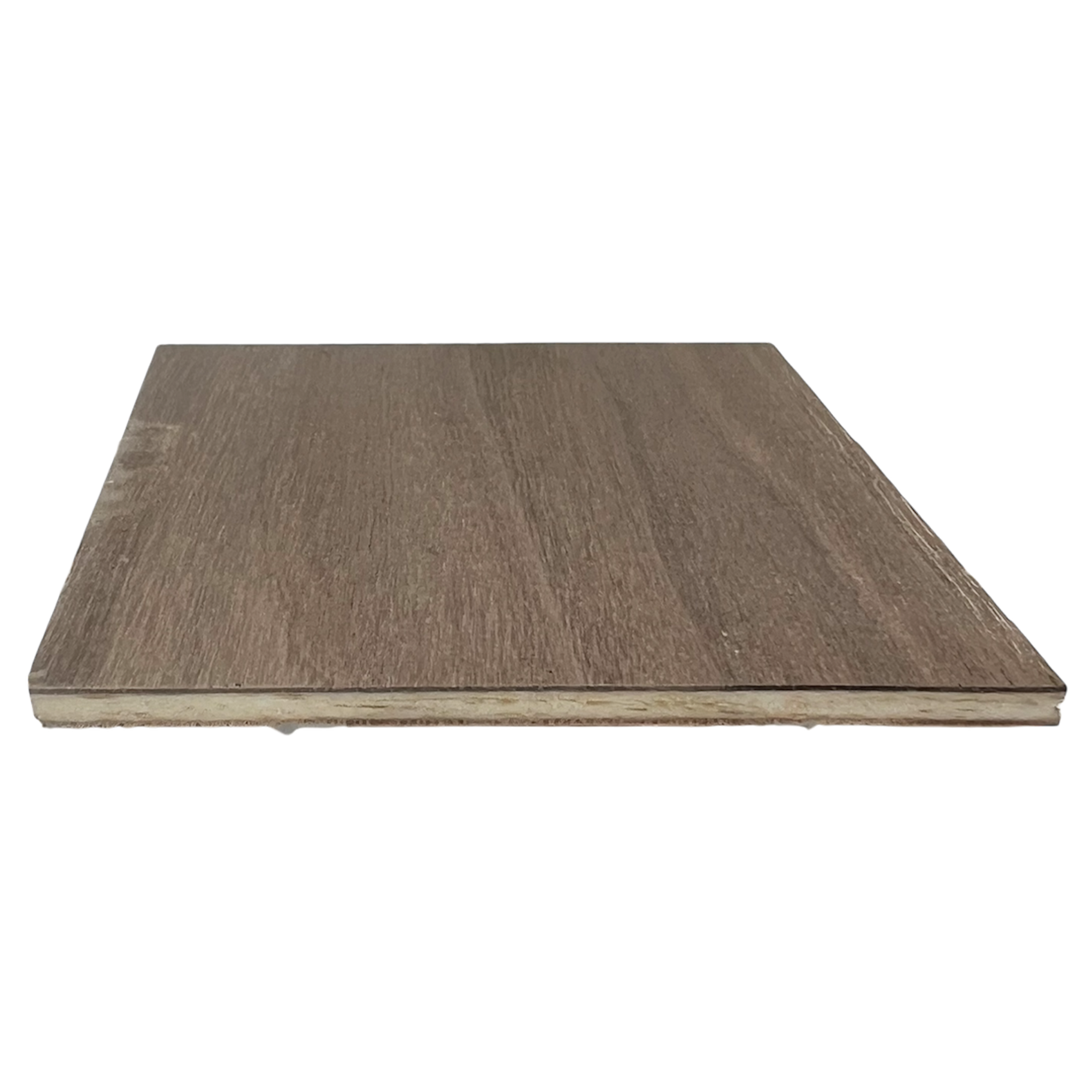

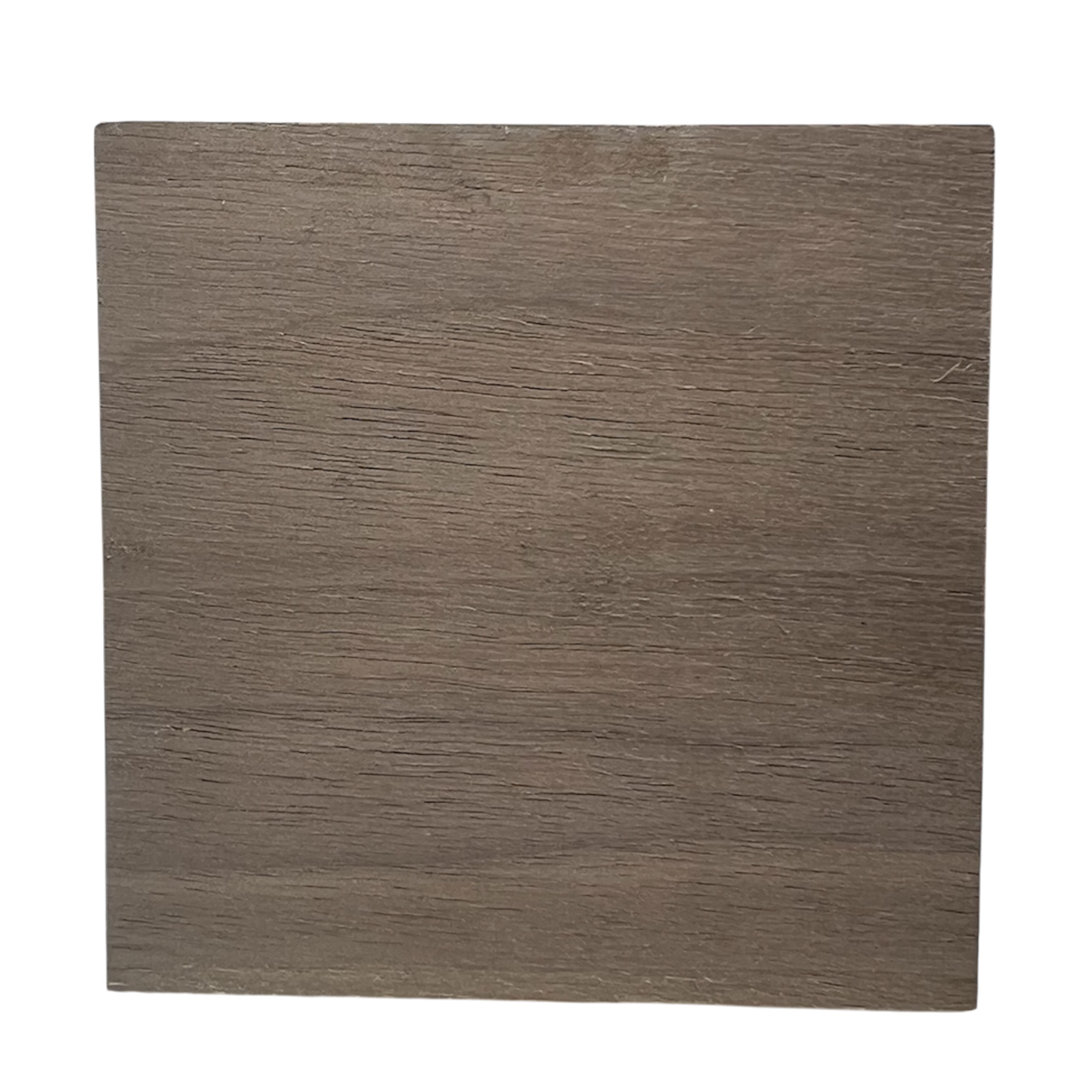

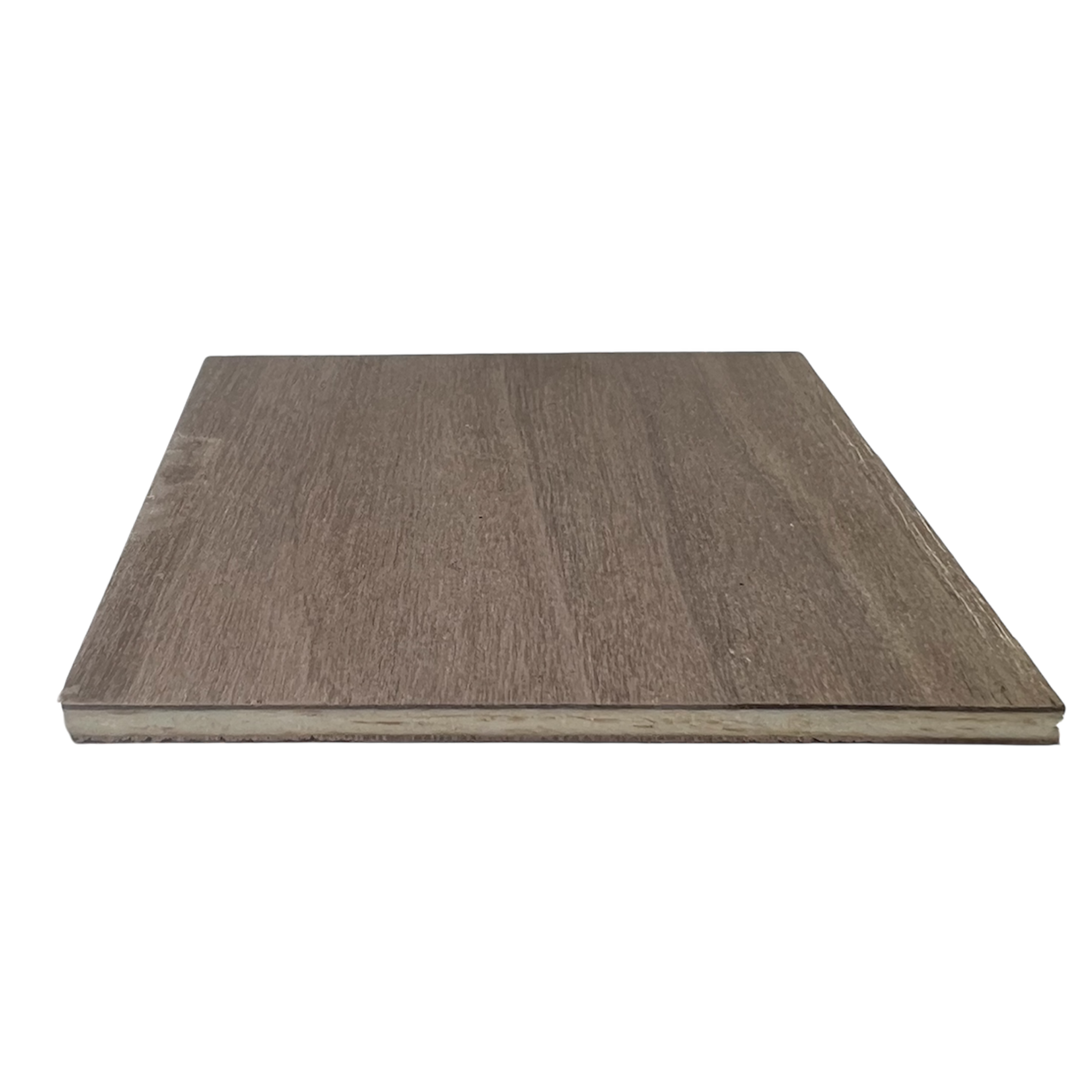

Walnut Veneer Plywood with Veneer Core

Walnut Veneer Plywood

Description

Our plain sliced walnut plywood has a high grade, rich medium brown A face veneer with a veneer core. The back, or 4 grade side, can vary, but is typically an oak, maple or birch face.

Plain sliced/Flat cut veneer is generally made by cutting a log parallel to the center. This results in an attractive cathedral shaped grain pattern.

Veneer Core plywood typically consists of a center veneer and crossband veneers alternately layered providing excellent weight bearing strength. Veneer core plywood also has great screw-hold ability.

Veneer Core panels are lighter in weight and less dense than any other core type.

Applications

This is a North American product and like most softwood plywood, the edge may have some voids in it, so the edges are not typically left exposed. This plywood is sometimes called furniture-grade plywood, and although that term does not always correspond to a specific grade, one face is very nice and can be finished to result in a professional-quality surface.

Like all plywood, the faces are graded for quality. Our walnut veneer plywood is A4, which means the better side is grade A and the worse side is grade 4. The A side is beautiful, with no knots or patches.

The backside is usually very good, but will usually have a few pin knots, some color variation, open knots, filled knots, visible veneer joints or seams. and perhaps patches. Typically you design your object such that the “4” face is on the backside or inside of an assembled object.

As such, these walnut veneer sheets are ideal for replacing furniture doors, sides and tops. Applied to another substrate, such as MDF, veneer sheets are a great option for casework, in place of more expensive solid wood.

You can finish soft core veneer plywood like any hardwood. We like the wipe-on Minwax polyurethane. Sand first, and then apply thin coats, with light sanding between applications.

Laser Cutting

Laser cutting walnut veneer works beautifully, with most lab cutters cutting up to 1/4in and many cutting up to 1/2in or more. The laser does leave a dark charred edge. Most people leave it as is, but if you prefer, you can easily sand the edges to remove the charring.

Laser cutting veneer opens up a multitude of projects and creative applications. Try wood veneer sheets for coasters, jewelry, game pieces, art work, signage, furniture and shell inlays, keychains, marquetry and more!

Specifications and Dimensions

• Nominal 1/8" and 1/4" thicknesses
• Thickness tolerance 1/8" (0.093-0.133) and 1/4" (0.180-0.240)
• The outer veneers on veneer plywood are quite thin, typically 0.010-0.020in (0.25-0.50mm)
• All MakerStock panel dimensions are cut to tolerances of +0in/-0.188in.
• All MakerStock panel dimensions are in inches.

• Density 570 kg/m3 or 0.021 lb/in3.
• Wood veneers are not masked
• Lightweight and durable
• Easy to stain, seal and finish

Uses

• Laser Cutting
• Laser Engraving
• Display Fixtures
• CNC Routing

• Furniture
• Signage
• Speakers
• Wall Art and Frames
